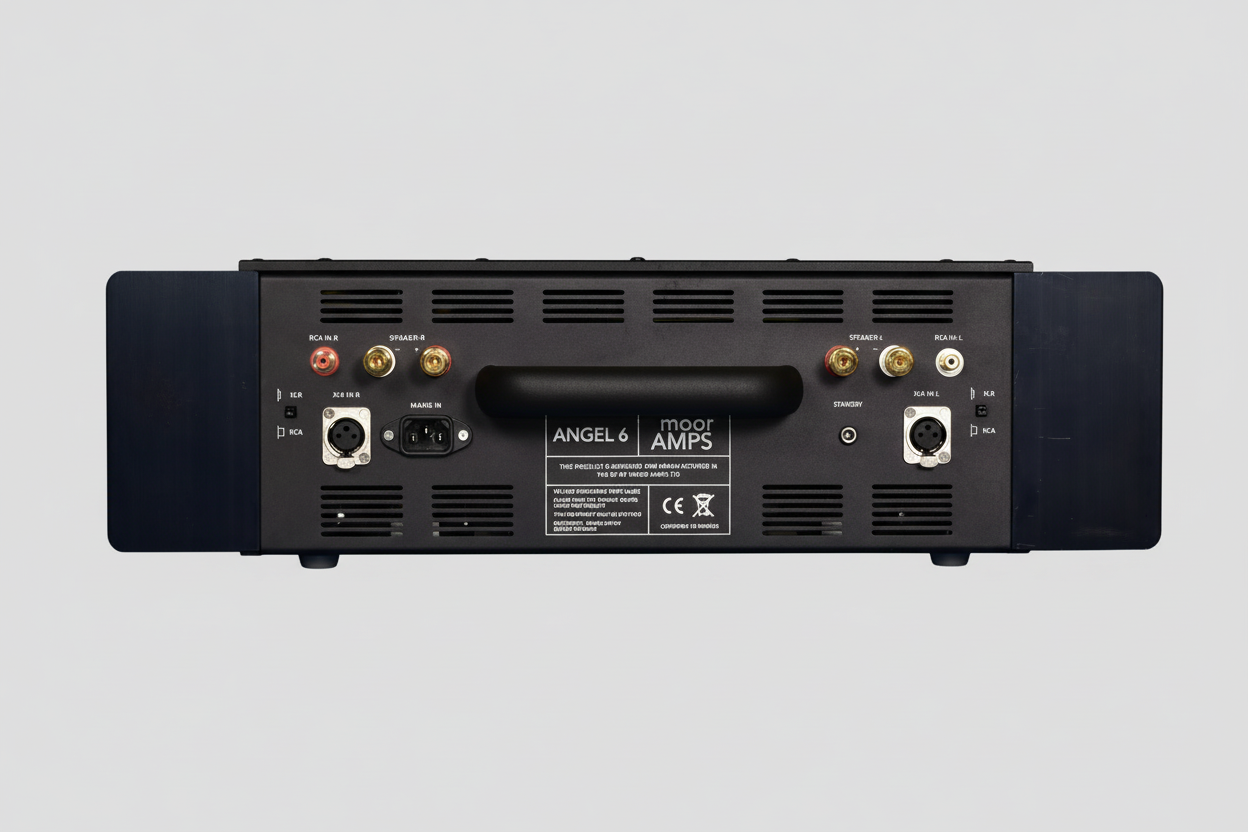

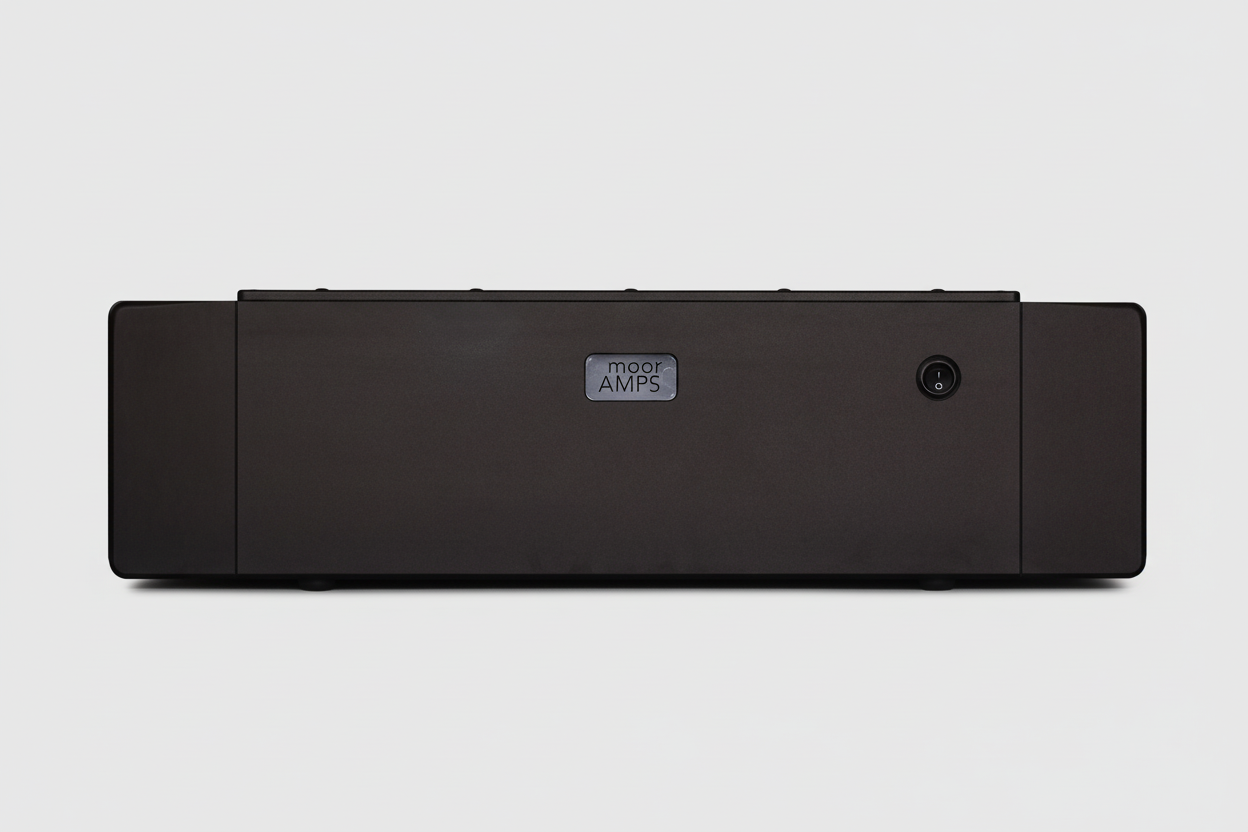

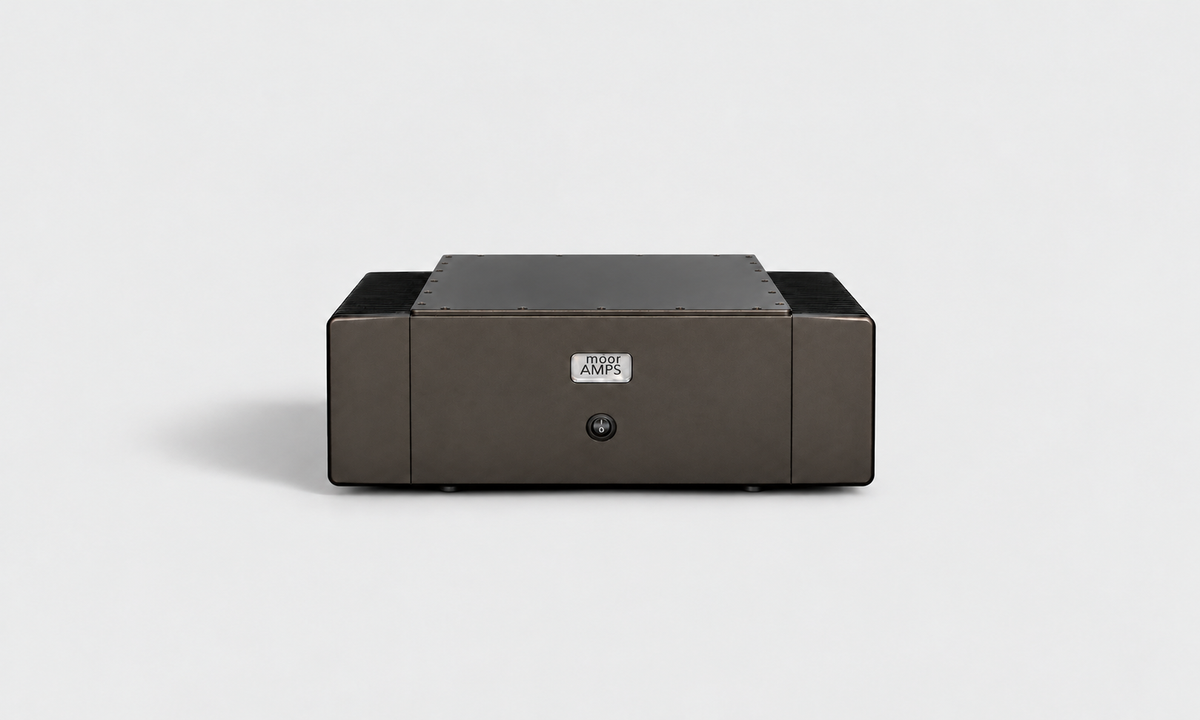

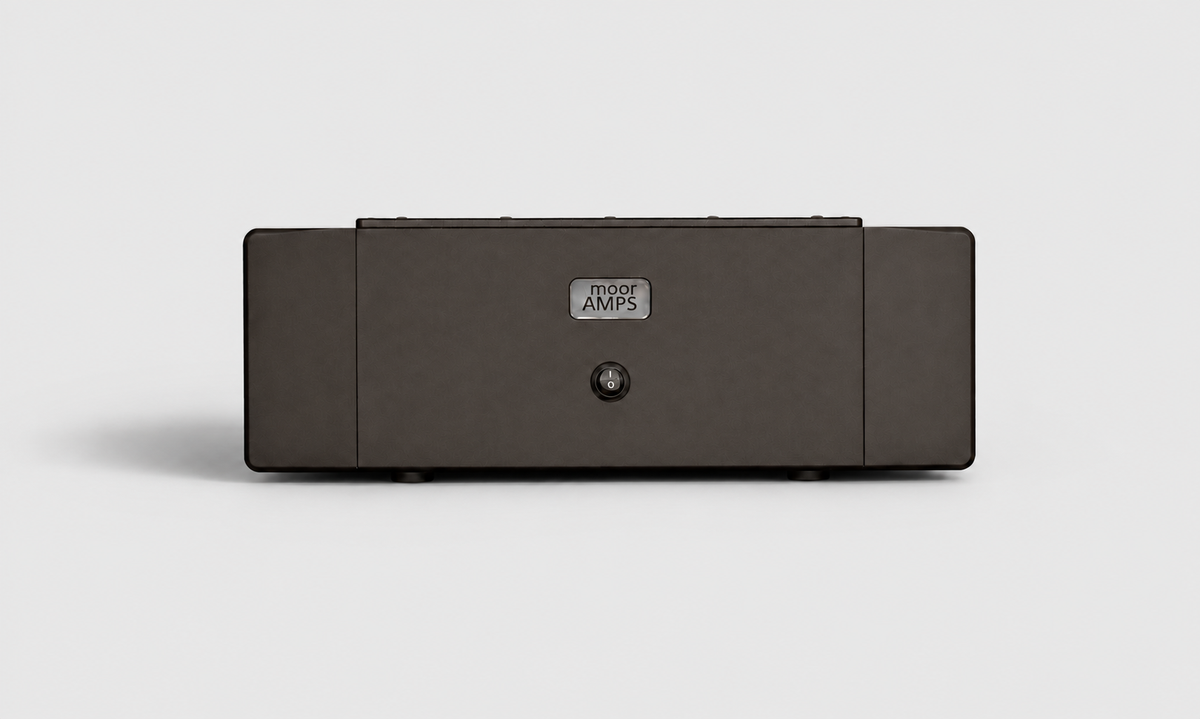

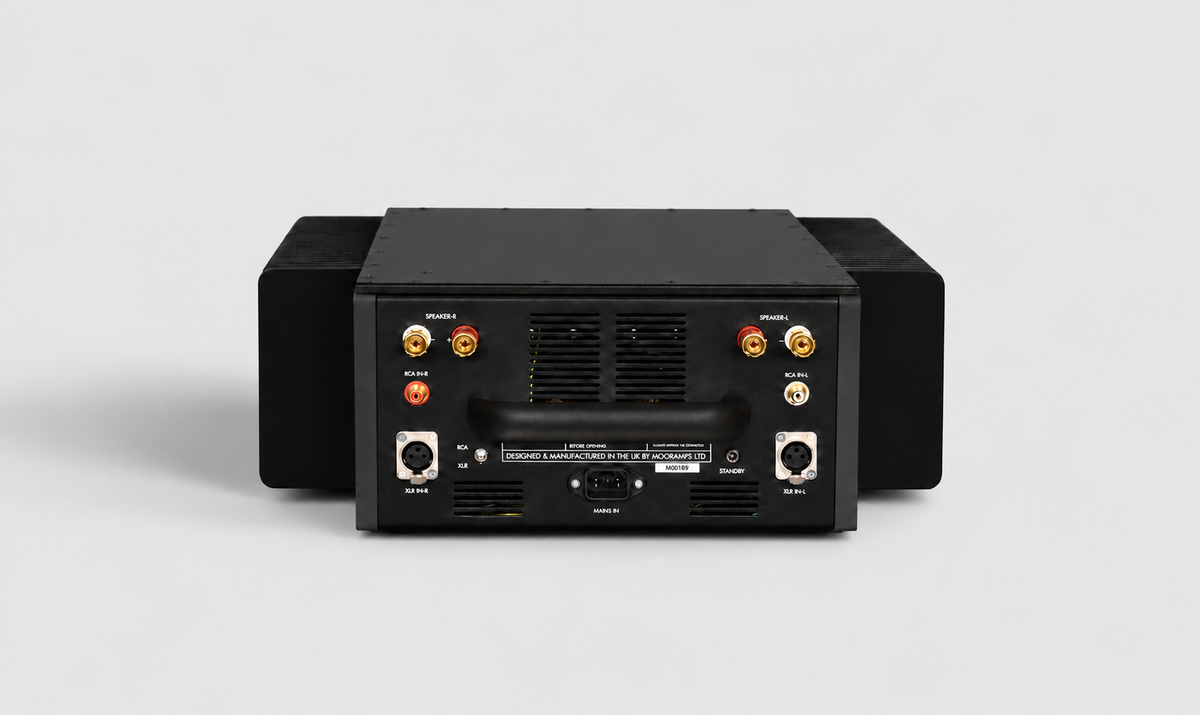

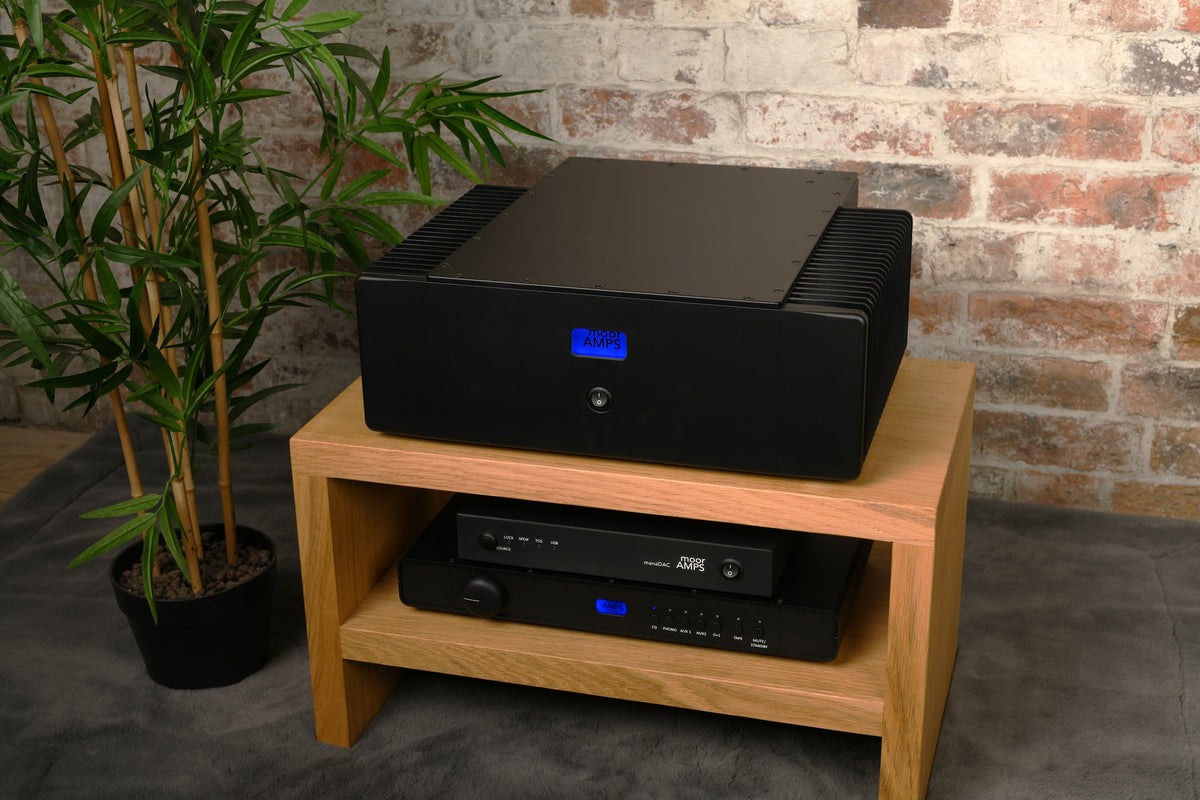

Angel 6 Power Amplifier
The pinnacle of 30 years of development, the Angel 6 has been designed with musical performance in mind.
By using only top quality components and combining low-feedback design with high current delivery, this design will make you believe the music is being played live in the room. The Angel 6 can drive even the most demanding of speakers to high levels, where other amplifiers start to compress and sound strained.
What Does This Mean For Your Music?
– An incredibly natural sound for instruments and vocals
– Fine detail resolution and massive dynamic range
– Awesome grip on timing and rhythm
– An immersive, believable musical experience
What Makes For The Astonishing Musical Performance Of The Angel 6?
Leaving no stone unturned in the search for musical perfection.
We extend our low-feedback philosophy to the power supplies. The low-feedback amplifier is fed with incredibly pure, high-current DC rails from low-feedback regulators.
More than 200,000uF of high-quality, low-ESR supply capacitors in 3 power islands isolate the circulating power supply currents and enhance the supply purity.
The heavy-machined casing uses different panel thicknesses to damp each other out and avoid vibration reaching the amplifier components.
The highly linear output stage uses 6 ring-emitter transistors to share the current load and remain linear, even when supplying massive currents to keep a grip on the speakers.
The Angel 6 combines the world of pure low-feedback with the high output currents needed to deliver the whole authentic musical performance. It delivers musicality and subtlety along with breathtaking power, scale and dynamics. It delivers Music!
Specifications
Output Power
- 150W RMS per channel into 8 ohms
- 300W RMS per channel into 4 ohms
- 580W RMS dynamic into 2 ohms
Distortion
( with typical loudspeaker load )
- THD: < 0.01%
- IMD: < 0.01%
Loudspeaker Outputs
- Nominal: 4 ohm to 16 ohm
- Minimum: 2 ohm
- Connections WBT Classic: Wired, Spade or 4mm plug
Inputs
RCA (phono) inputs:
- 1V rms for full output
- Input Impedance 15k ohm
XLR (balanced) inputs:
- +/- 1V rms for full output
- Input Impedance 3k ohm
Frequency Response
5Hz to 50kHz +/- 1dB
Protections
- Short Circuit or Overload: +/-29A max
- Overtemperature: +55C
- Undertemperature: +5C
Measurements
Amplifier dimensions:
- Width 575mm x Depth 367mm x Height 172mm
- Weight 29kg
Packaged dimensions:
- Width 640mm x Depth 434mm x Height 220mm
- Weight 31kg
Mains Power
- IEC inlet cable for 230V AC 50Hz mains
- Optional 115V AC 60Hz version available
- Power Consumption:
- Maximum 1300VA
- Idle 80VA
- Standby < 0.5W
£12800
